          • Centrifuge mixer
            •

          • SCM-4K
            •

          • Centrifuge speed: 1500~4000rpm, operation modes: centrifugation, mixing, centrifugation + mixing, 8-tube carrier, 1.5/2mL centrifuge tube carrier
            •











          • SCM-4K
            •

          • Centrifuge mixer
            •

          • Centrifuge speed: 1500~4000rpm, operation modes: centrifugation, mixing, centrifugation + mixing, 8-tube carrier, 1.5/2mL centrifuge tube carrier
            •




                        Centrifuge mixer SCM-4K integrates centrifugation and mixing in one step, with multiple operating modes for flexible carrier selection, significantly improving PCR laboratory throughput and ensuring uniformity between wells.




















						Product Introduction





						Centrifuge mixer SCM-4K integrates centrifugation and mixing in one step, with multiple operating modes for flexible carrier selection, significantly improving PCR laboratory throughput and ensuring uniformity between wells.





						Variable-speed centrifuge vortex mixer, compact design, high cost-effectiveness. Programs set centrifugation and mixing operations, suitable for centrifuge vortex mixing of multiple microtubes and 0.2ml strip tubes. Using rotate-mix-rotate technology, sample processing cycles are automatically performed through programming, capable of simultaneously handling 12 2ml tubes, saving time significantly and eliminating the hassle of transferring to other equipment for vortexing after each centrifugation.





















							Product Features





							○ Polarized shutdown, induction cover protection.





							○ Graded locking, convenient operation.





							○ Compound knob, intelligent one-button operation.





							○ Optional rotor replacement to accommodate various microtube sizes and 0.2ml strip tubes.





							○ Vortex mixing mode with low, medium, and high options.





















								Application Range





								Life Sciences — Basic research purposes (PCR diagnostic tests), used in microbiology, biochemistry, clinical trials, and industrial biotechnology laboratories..

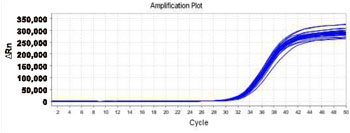

									Test Report









									Detection channel

									Centrifuge only without mixing

									LAWSON SCM-4k mix + centrifuge





									Fam channel

									High-pressure homogenizer Test Report 1

									High-pressure homogenizer Test Report 2





									Vic channel

									High-pressure homogenizer Test Report 3

									High-pressure homogenizer Test Report 4





									Rox channel

									High-pressure homogenizer Test Report 5

									High-pressure homogenizer Test Report 6





									Cy5 channel

									High-pressure homogenizer Test Report 7

									High-pressure homogenizer Test Report 8





















										Test Datat











										Detection channel

										Group information

										Centrifuge only without mixer

										SCM-4k 10 cycles of mixer + centrifuge





										Fam channel

										Average Ct value

										Ct Cv%

										30.81

										0.89

										30.34

										0.55





										Vic channel

										Average Ct value

										Ct Cv%

										31.89

										1.05

										31.62

										0.63





										Rox channel

										Average Ct value

										Ct Cv%

										38.80

										2.17

										36.85

										1.09





										Cy5 channel

										Average Ct value

										Ct Cv%

										31.57

										1.20

										30.86

										0.36

















											Notes: Experimental Overview





											Experimental System: PFM5071 lyophilized powder;

											Template: Human genome quadruple amplification detection, 24T/group;

											Experimental Procedure: 50°C, 2min; 95°C, 5min; 50 cycles (95°C, 10s; 55°C, 40s).





















												Technical Parameters







												Model:

												SCM-4K





												Centrifuge Speed:

												15004000rpm





												Speed Adjustment:

												100rpm





												Operation Modes:

												Centrifuge, mix, centrifuge + mix





												Mixing Intensity Levels:

												Strong, Medium, Gentle





												Compatible Carriers:

												8-tube carrier, 1.5/2mL centrifuge tube carrier





												Carrier Locking Method / Locking Force:

												Quick-release knob / Multi-level





												Program Memory:

												Yes





												Program Cycle Number:

												1999





												Lid Shutdown:

												Inductive





												Abnormal Vibration Shutdown:

												Yes





												Power Adapter Input:

												AC 100~240V, 1.4A, 50/60Hz





												Maximum Input Power:

												60W





												Dimensions:

												218mm x 234mm x 136mm





												Weight:

												≤1.5kg
